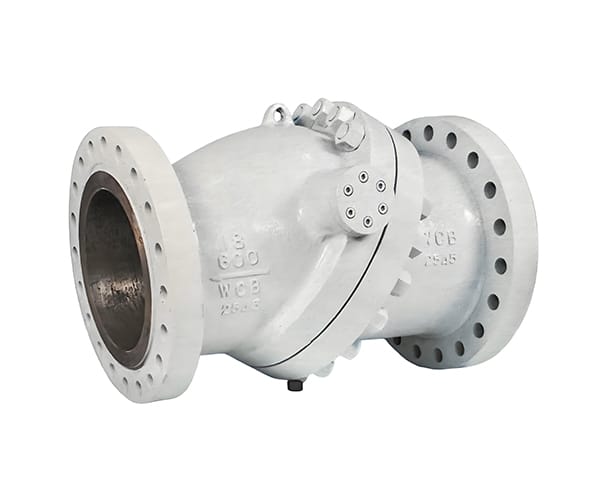

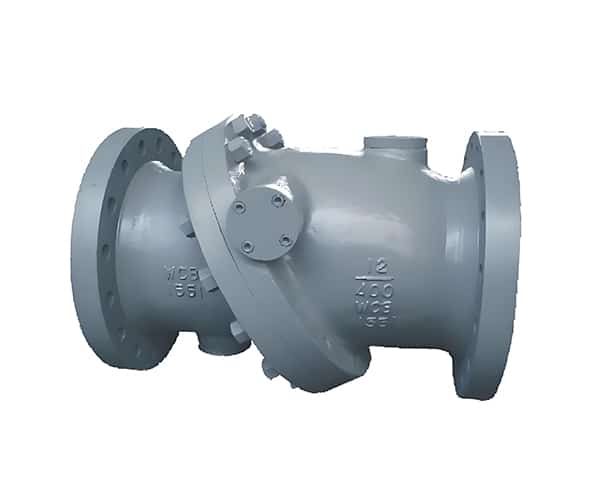

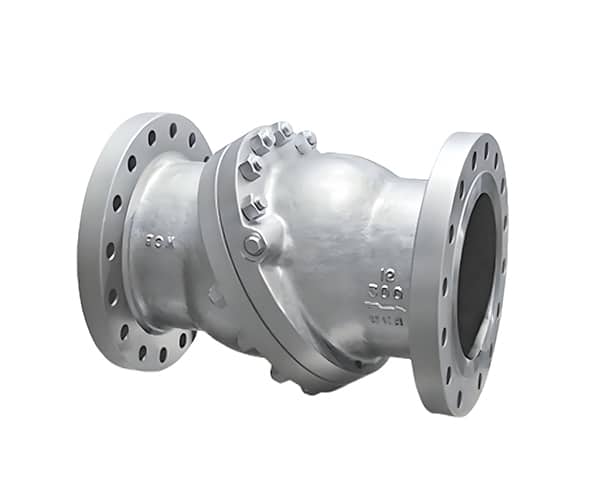

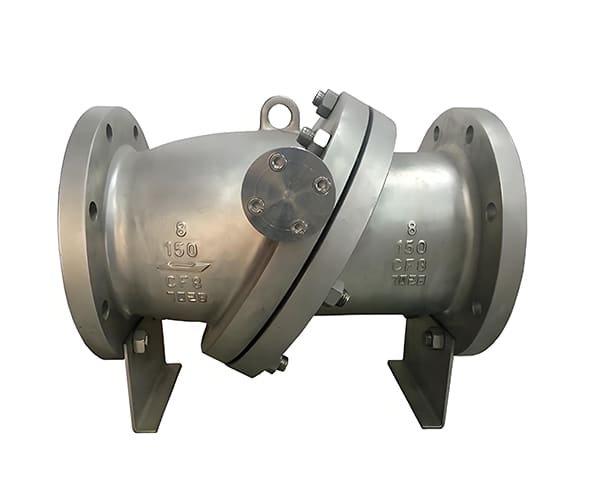

Product Overview:

The Tilted Disc Axial Flow Check Valve is engineered to allow fluid flow in one direction while preventing backflow. It uses a tilted disc that is aligned with the flow path, offering minimal resistance, lower pressure drop, and reduced operational noise. The valve is designed to reduce water hammer effects and ensure smooth flow, even under high-pressure conditions, making it ideal for critical industrial systems.

Product Features:

Tilted Disc Design: The tilted disc design provides a more efficient flow path by minimizing turbulence, reducing pressure drop, and ensuring stable operation at high flow rates.

Axial Flow Orientation: The valve is designed for axial flow, which minimizes flow disturbances, ensuring smooth and consistent flow characteristics.

Non-Slam Operation: The valve incorporates advanced engineering to prevent valve slam, thereby protecting the system from water hammer and enhancing the overall durability and safety of the system.

Durable Construction: Manufactured from high-strength materials such as carbon steel, stainless steel, and alloy steel, the valve offers excellent resistance to wear, corrosion, and high-pressure conditions.

Customizable Sizes: Available in a wide range of sizes, from DN50 to DN1200, offering flexibility for various industrial applications.

Streamlined Sealing Mechanism: The valve is designed to provide effective sealing while allowing minimal leakage to ensure reliable operation.

Advantages

Effective Backflow Prevention: The valve prevents backflow effectively, ensuring that downstream equipment, such as pumps and turbines, is protected from reverse pressure surges.

Reduced Water Hammer: The design minimizes the shock waves caused by sudden flow reversals, which helps to prevent water hammer and the associated pressure spikes.

Low Pressure Drop: The axial flow design results in reduced resistance, allowing for improved system efficiency and lower energy consumption.

Noise Reduction: The streamlined disc design helps to reduce operational noise, making it ideal for noise-sensitive environments.

Reliability: With fewer moving parts and robust construction, the tilted disc axial flow check valve is known for its reliability and longevity, even in harsh conditions.
